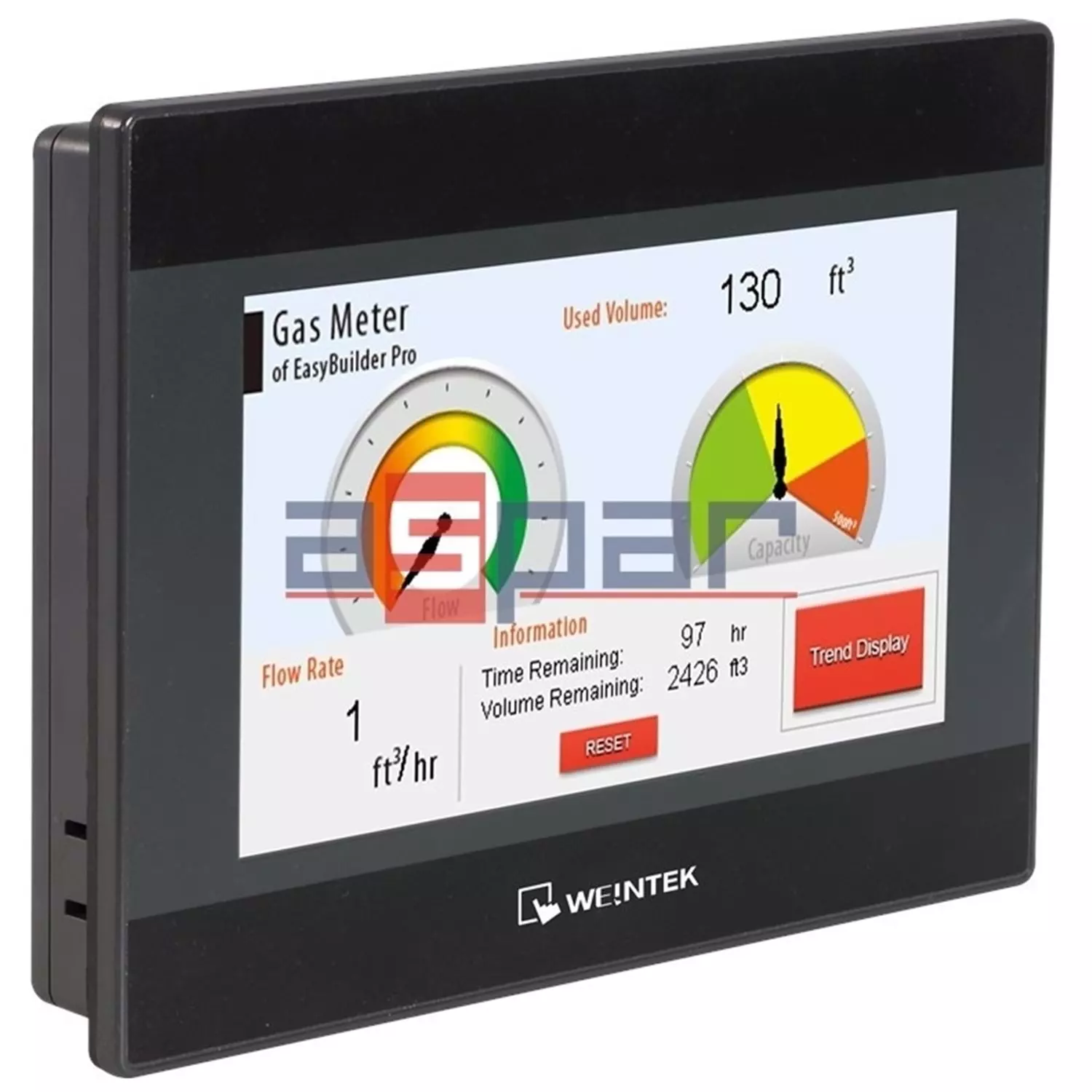

7' HMI DOKUNMATİK PANEL.
- 7 ' 800 x 480 TFT LCD, LED Backlight
- Fan-less Cooling System
- Built-in flash memory and RTC
- NEMA4 / IP65 Compliant Front Panel
- COM2 RS-485 2W supports MPI 187.5K
- Built-in power isolation
Features
7' 800 x 480 TFT LCD, LED Backlight
Fan-less Cooling System
Built-in flash memory and RTC
NEMA4 / IP65 Compliant Front Panel
COM2 RS-485 2W supports MPI 187.5K
Built-in power isolation
MT8072iP
◆ Dimensions
Pin Assignment:
COM1 [RS232] / COM2 [RS485] 9 Pin, Male, D-sub
PIN#
COM1
[RS232]
4W
COM2
[RS485]
4W 2W
1 Rx- Data2 Rx+ Data+
3 Tx4 Tx+
5 GND
6 TxD
7 RTS
8 CTS
9 RxD
Ordering Information
MT8072iP:
7' 800 x 480 TFT LCD HMI, 256MB flash memory, 128MB RAM on
board
Optional:
RZACEA020: EasyAccess 2.0
MT8072iP_Datasheet_ENG_20230113
